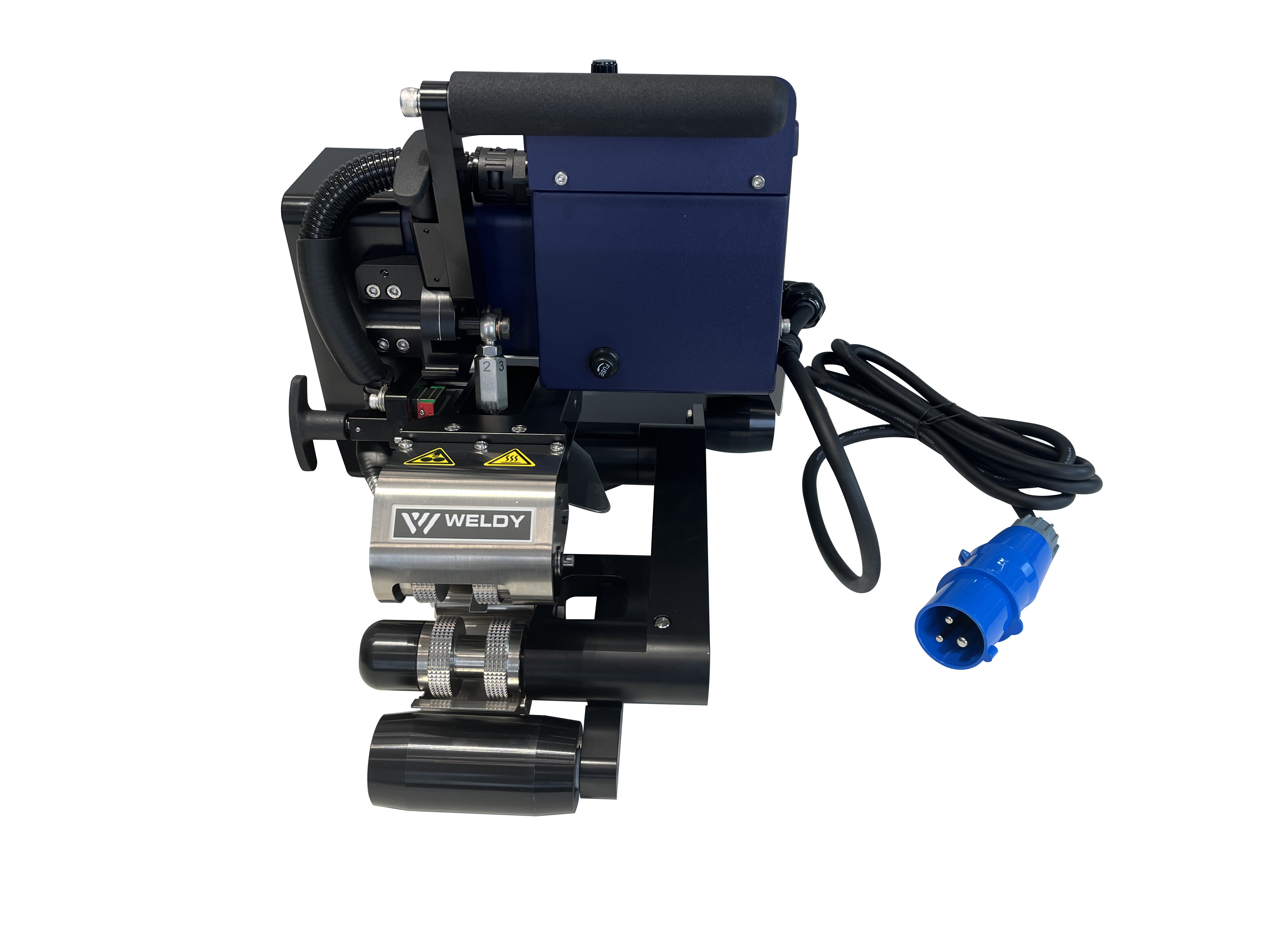

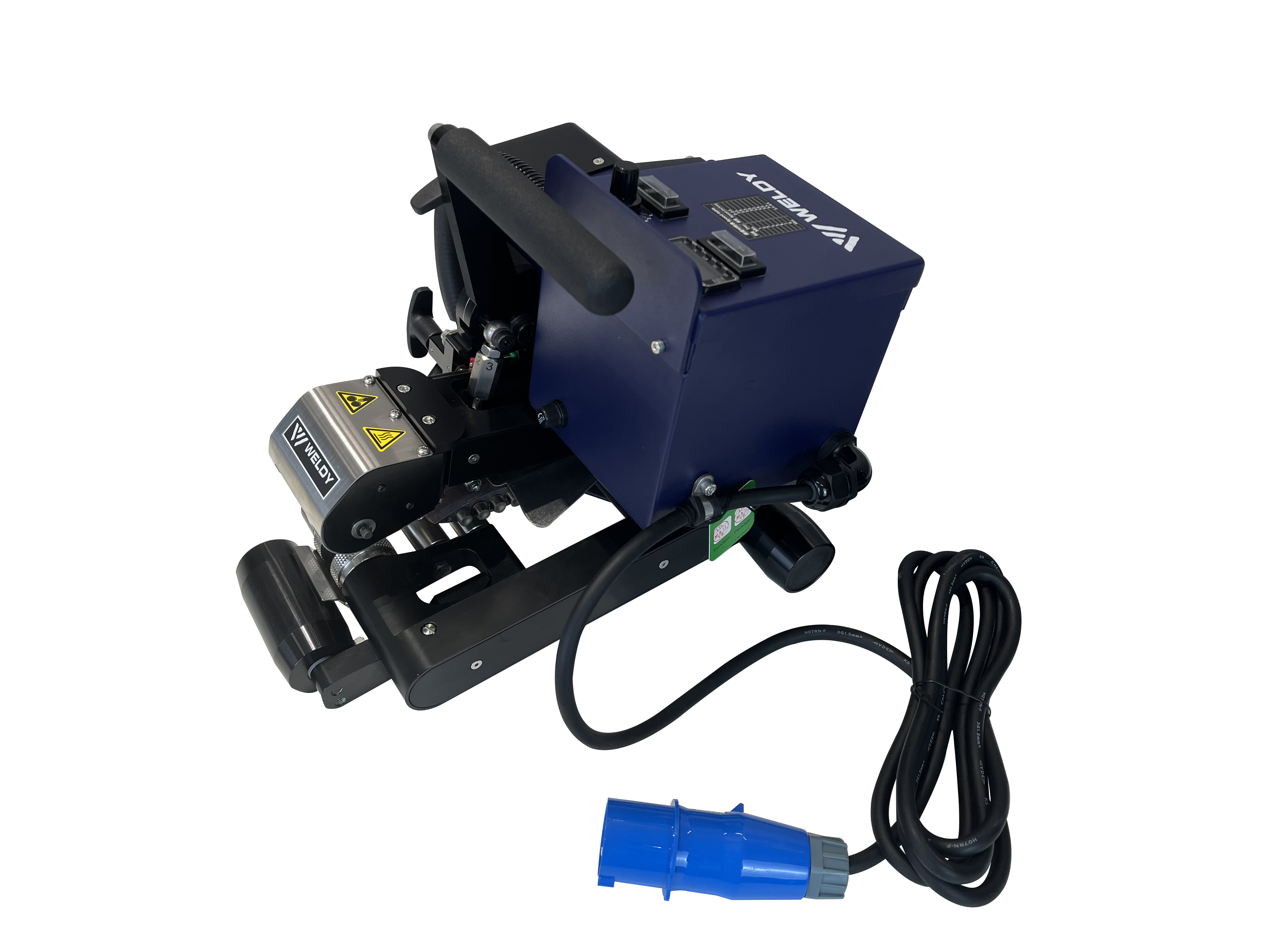

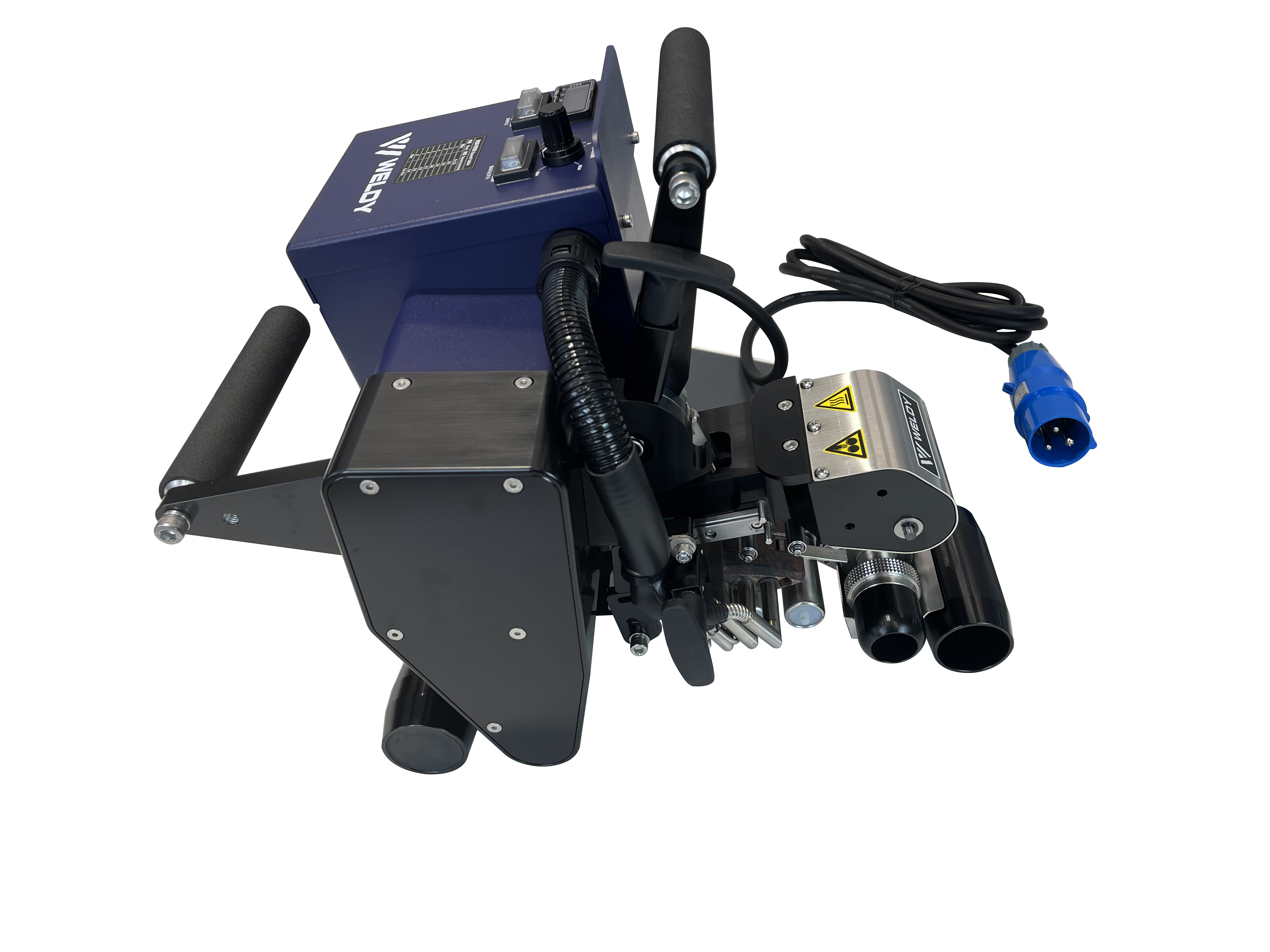

WGW300

Category:

Geomembrane Welder

Hotline：

86-15705856568

Product Inquiry

Features:

WGW 300 - 230V / 1750W / copper wedge for PE / CEE-plug

1.User-friendly and practical design
2. Direct controls for temperature and air volume
3. Powerful and durable drive motor
4. Perfect welding thanks to optimal seam geometry
5. Large rollers for uneven ground

Advantage:

Field-proven and strong design
1. Simple and clear handling thanks direct buttons
for each function
2. Powerful, durable drive motor
3. Perfect welding result thanks to optimized
seam geometry
4. Big travel rollers - perfect even on bumpy
underground

Function:

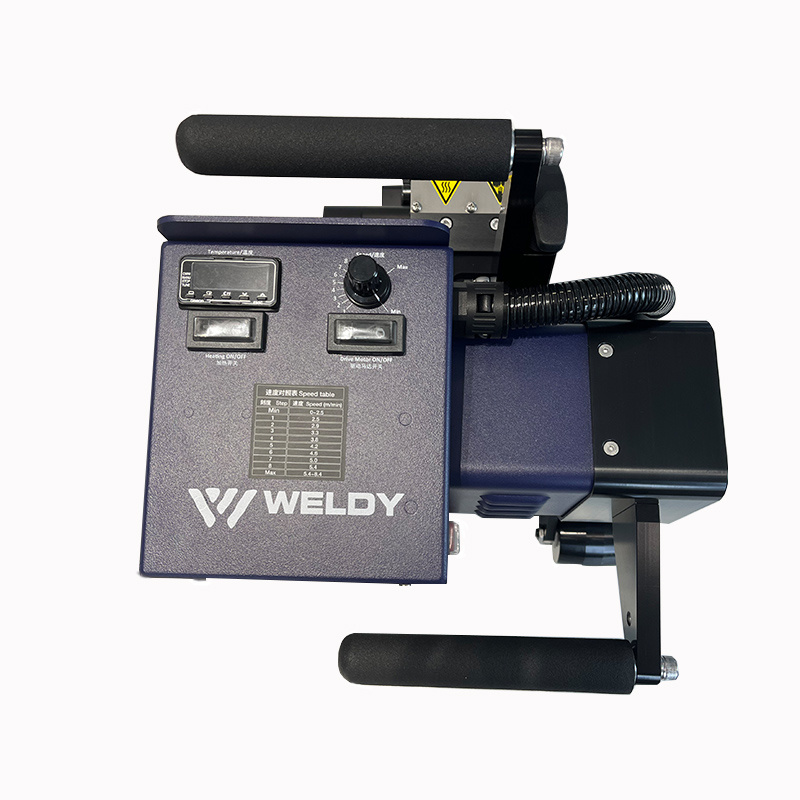

1. Heating and motor can be turned on and off directly with the controls, which enables fast, safe and intuitive operation;

2. WGW 300 weighs 15 kg and can be easily stored and transported in the storage box supplied;

3. A steel wedge is required for welding PVC geomembranes;

4. The WGW 300 automatic welder is equipped with a powerful and durable motor

Product model	WGW 300 (CEE plug)
voltage	230V~
frequency	50/60hz
power	1750W
Heating temperature	Up to 450
Weld width	2x12mm
Overlap width	125mm
Driving speed	0-8.5m/min
weight	15kg
Dimensions (L x W x H)	445xx323x315mm
Safety protection level	glass 1

Quality Assurance

We have the certificate of ISO9001 and CE,BV,SGS and CNAS approval with the strength of service, good quality and pretty competitive price. Customers’ biggest benefit is our goal, machine’s quality is the life of our company. By many years of growth, we have our best partners in the world.
