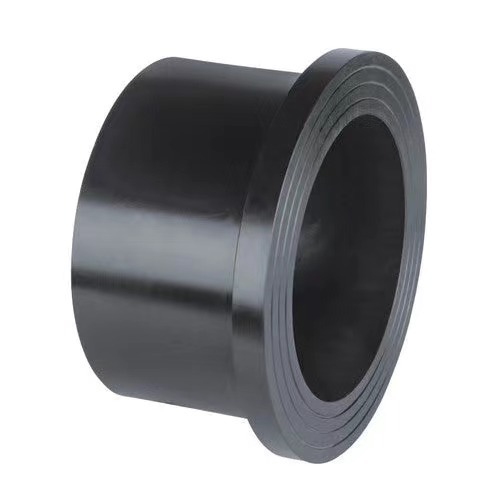

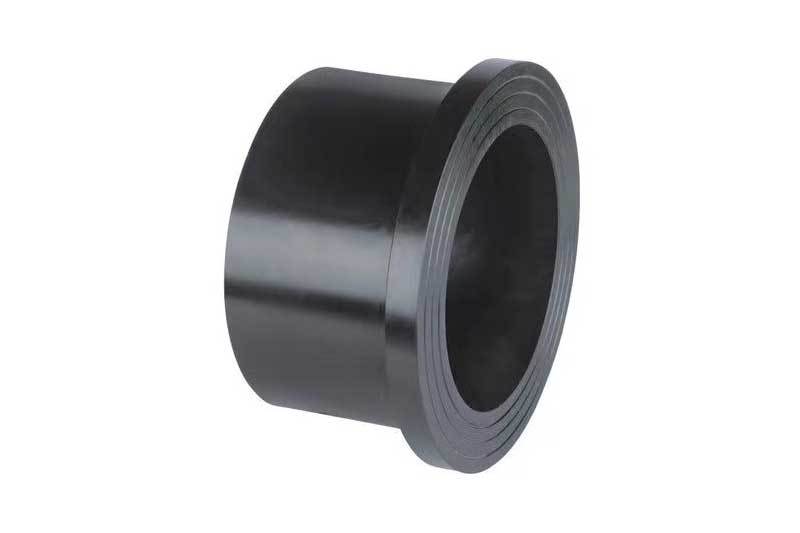

ASTM IPS Flange Adaptor

Category:

Products

HDPE Fittings

ASTM IPS INCH Butt Fusion Fittings

Hotline：

86-15705856568

Product Inquiry

Description：
Butt Fusion Fittings are most often used for the installation of various pipes in places where the pipeline bends - where it makes turns, changes its size, etc. The fact is that such segment fittings are created by welding several parts of HDPE pipes into a single part, which makes it easy to obtain the required shape without loss of quality.
"POLYFUSION" company provides the purchase of polyethylene pipe fittings. They are used to construct pipelines for transporting water or other liquid and gas media. Installed at the flange connection of branch, rotating, small or large diameter transition, closed regulating valves.

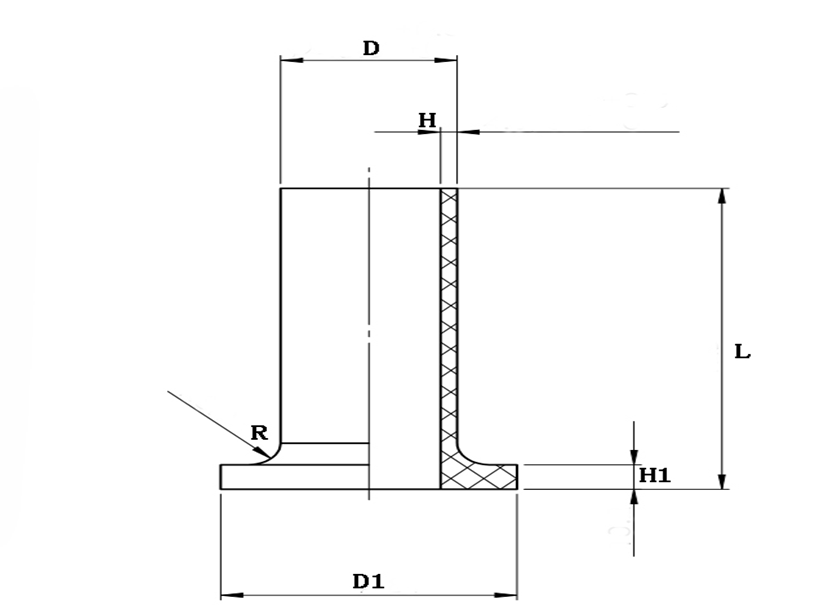

FLANGE ADAPTOR

Size	D（MM）	D1(MM)	L（MM）	H1（MM）	R(MM)	H（MM）	H（MM）	H（MM）
Size	D（MM）	D1(MM)	L（MM）	H1（MM）	R(MM)	SDR9	SDR11	SDR17
1*1/2"	48.3	81	125	10.2	8.9	5.5	4.5	-
2"	60.3	101.6	203	10.2	8.9	7	5.6	-
3"	88.9	127	203	15.2	8.9	10	8.2	-
4"	114.3	167.6	203	20.3	10.9	13	10.5	-
6"	168.3	215.9	203	20.3	10.9	19	15.5	-
8"	219.1	270	229	30.5	10.9	25	20.5	-
10"	273	325	280	37.5	10.9	31	25.5	-
12"	323.9	387.5	280	45	10.9	36	30	-
14"	355.6	444.5	280	43	10.9	-	33	21.5
16"	406.4	508	305	48	12.7	-	38	24.5
18"	457.8	536	305	50	12.7	-	43	27.5
20”	508	596.9	305	58	12.7	-	47	30
22”	558.8	650.2	305	63.5	12.7	-	51	33
24”	609.6	708.7	355.6	73.7	12.7	-	56	36

Main advantages:
*Easy to install, short welding time, and reliable joints.
*Resistant to aging and corrosion caused by both natural and human negative factors.
*Weld reliability, hydrostatic strength, and thermal stability.
*The interior and exterior surfaces of the accessories are smooth.
They are made of pipes that have passed the Acceptance testing and meet the sanitary and technical requirements of ISO4427.

HDPE pipe fittings wholesale manufacturer:
We manufacture butt fusion fittings and sell them in bulk directly from the factory, which makes cooperation with us especially beneficial when purchasing large lots.
Availability of products in stock ensures fast and timely shipment. For complete information and a price list for all shaped products, use the feedback form or call 0086-532-66733884.

Quality Assurance

We have the certificate of ISO9001 and CE,BV,SGS and CNAS approval with the strength of service, good quality and pretty competitive price. Customers’ biggest benefit is our goal, machine’s quality is the life of our company. By many years of growth, we have our best partners in the world.
