PP -Steel Flange for Stub End

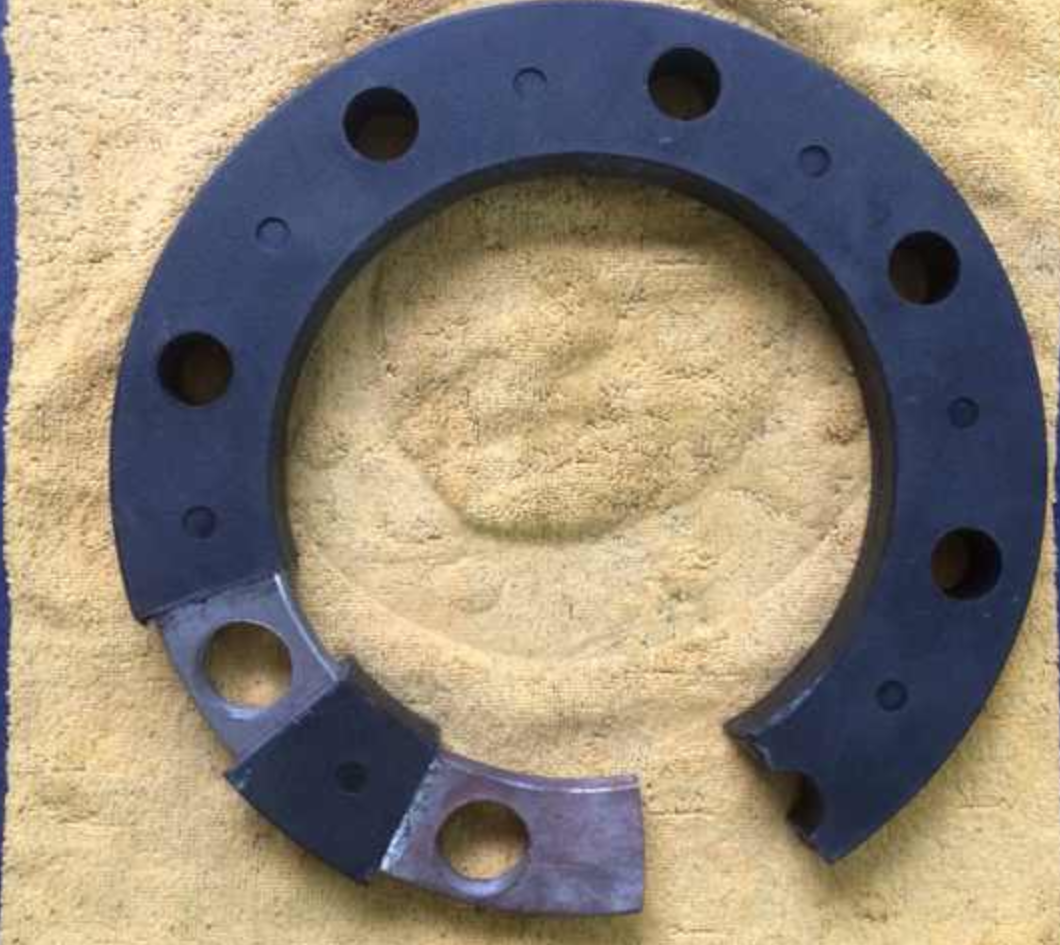

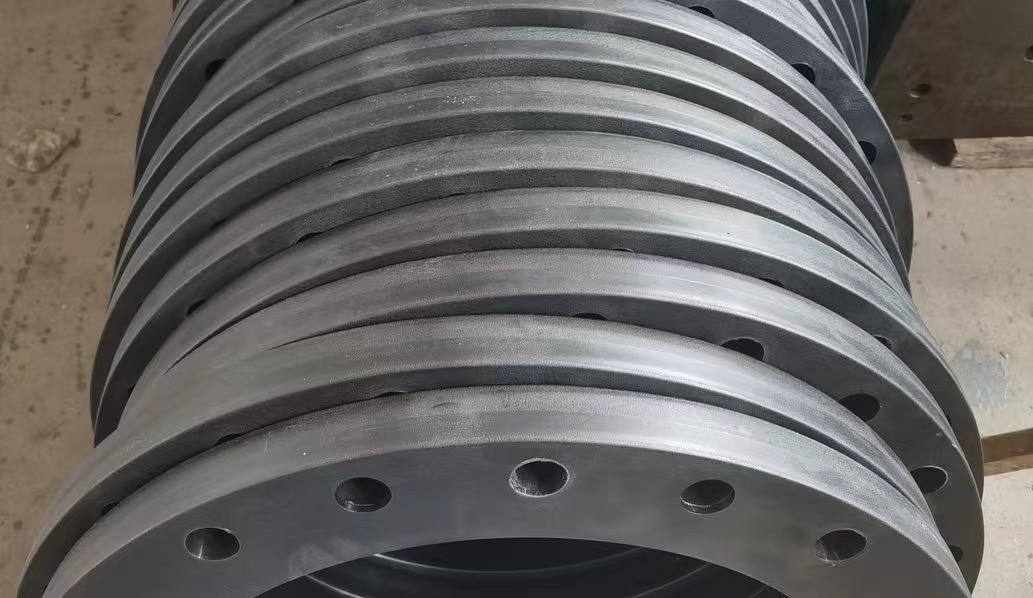

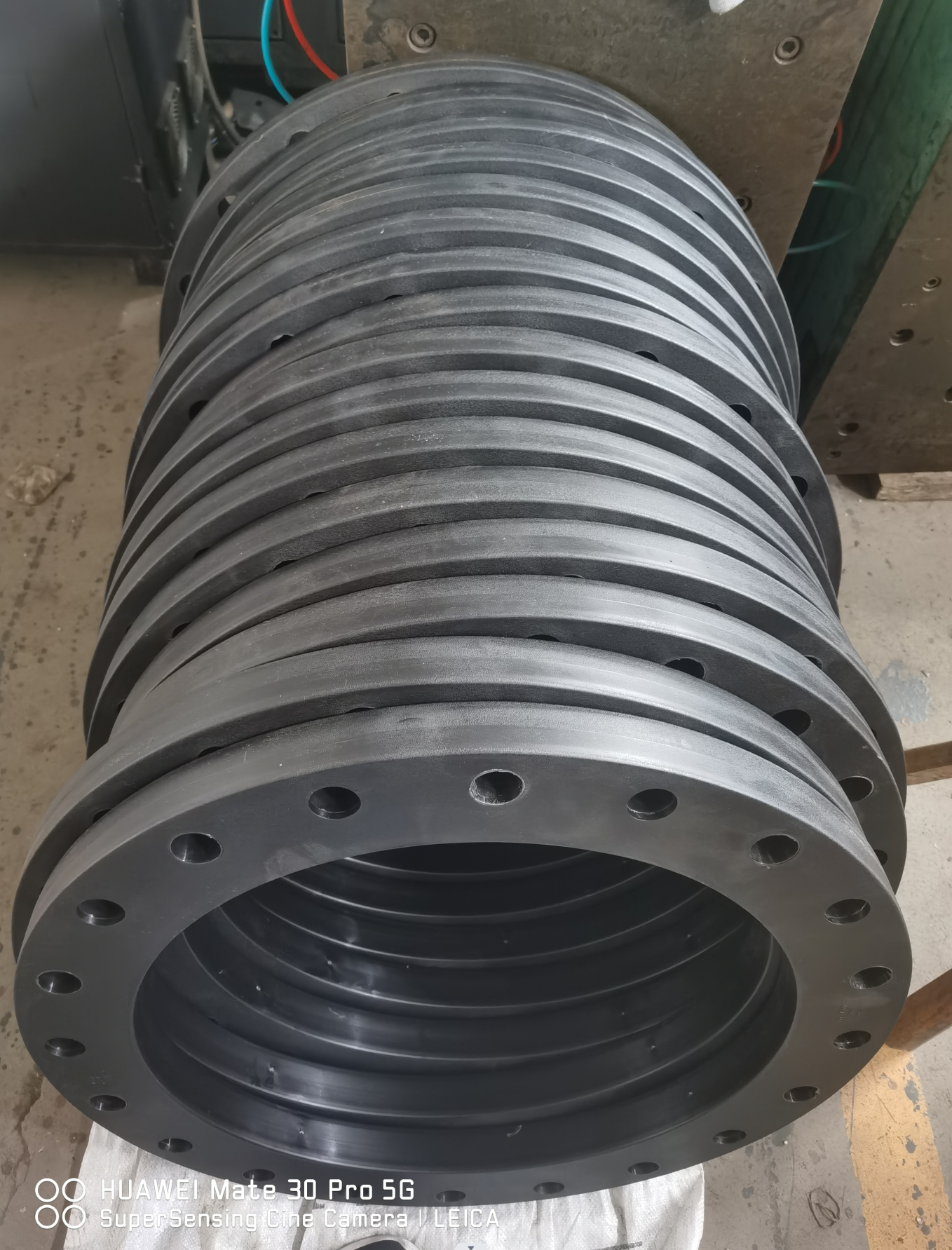

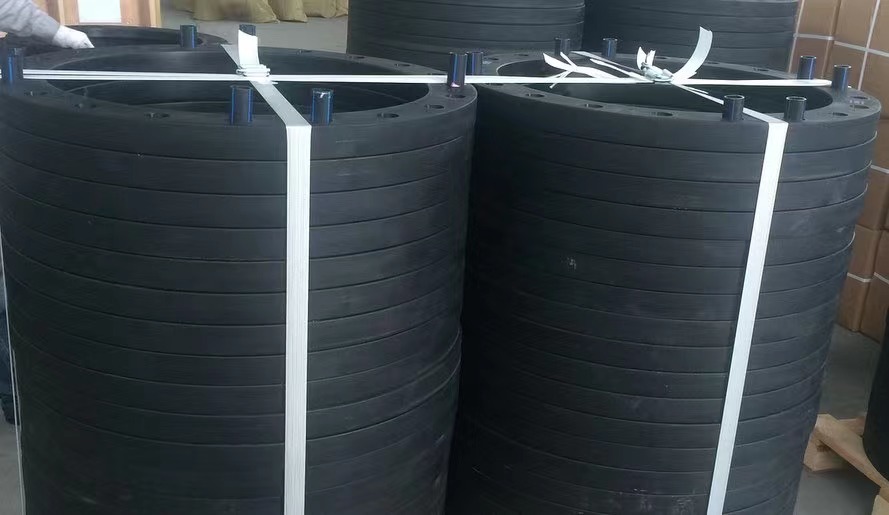

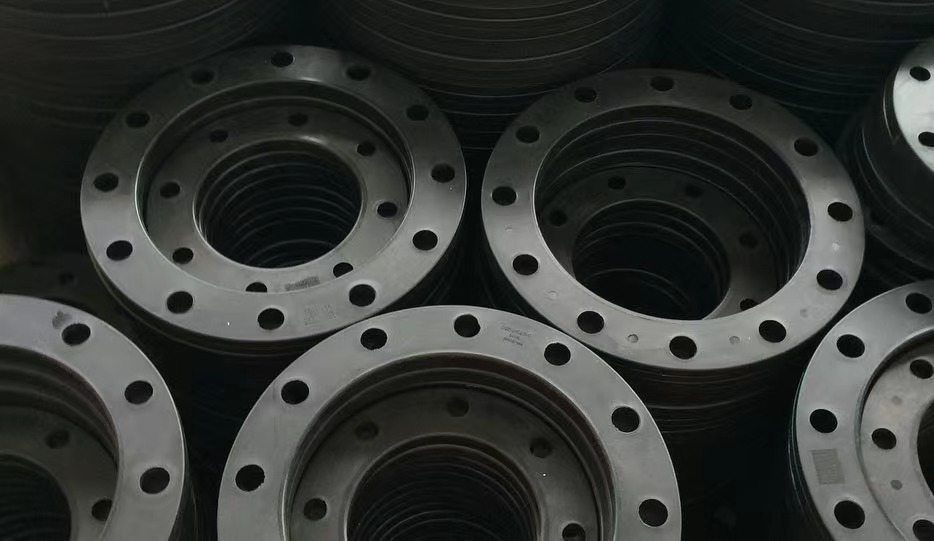

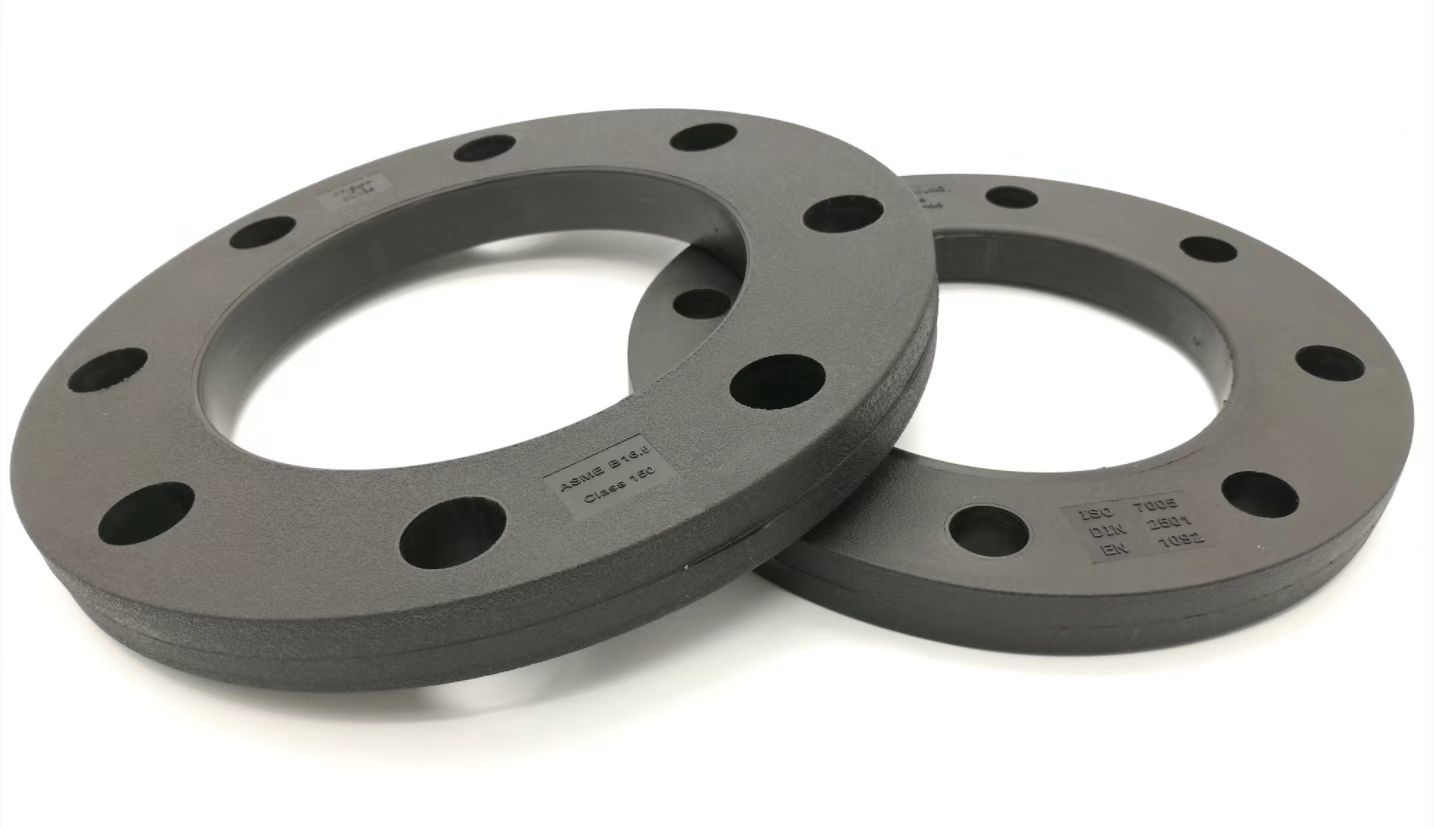

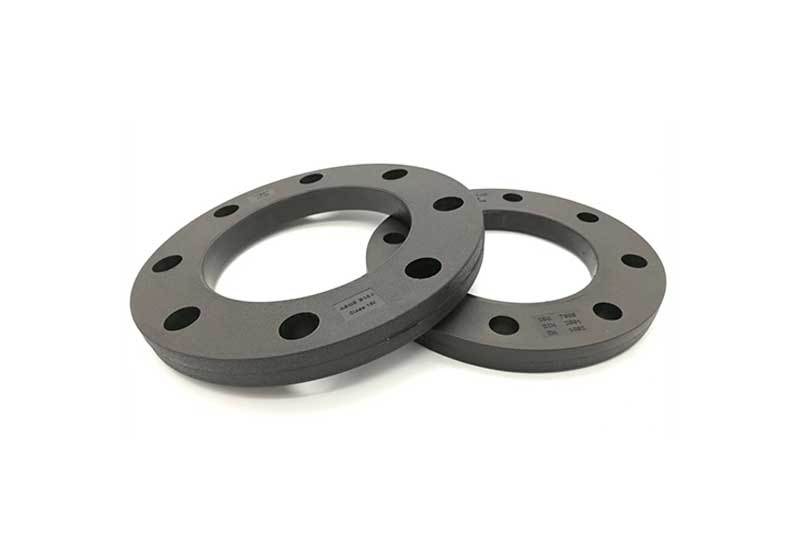

PP Coated Steel Backing Rings( Flanges) are used with HDPE/PP stub end and flange adaptors, and have adavantages of higher strength, less weight and anti corrosion.

Smart Joint produce a full range of HDPE flange adaptors up to 63" and offer a whole package for HDPE adaptors and backing ring to the customer.

DN	PE (dn)	D	K(PCD)	B(ID)	n	d	h	PN
40	50	150	110	62	4	18	18	pn16
50	63	165	125	78	4	18	18	pn16
65	75	185	145	92	4	18	18	pn16
65*	75	185	145	92	8	18	18	pn16
80	90	200	160	108	8	18	20	pn16
100	110	220	180	128	8	18	20	pn16
100*	125	220	180	135	8	18	20	pn16
125	125	250	210	135	8	18	22	pn16
125*	140	250	210	158	8	18	22	pn16
150	160	285	240	178	8	22	22	pn16
150*	180	285	240	188	8	22	22	pn16
200	200	340	295	235	12	22	24	pn16
200*	225	340	295	238	12	22	24	pn16
250	250	405	355	288	12	26	26	pn16
250*	280	405	355	294	12	26	26	pn16
300	315	460	410	338	12	26	28	pn16
350	355	520	470	376	16	26	30	pn16
400	400	580	525	430	16	30	32	pn16
200	200	340	295	235	8	22	24	pn10
200*	225	340	295	238	8	22	24	pn10
250	250	395	350	288	12	22	26	pn10
250*	280	395	350	294	12	22	26	pn10
300	315	445	400	338	12	22	26	pn10
350	355	510	460	376	16	22	28	pn10
400	400	570	515	430	16	26	30	pn10
400	450	620	565	517	20	26	32	pn10
40	50	150	110	62	4	18	18	pn16
50	63	165	125	78	4	18	18	pn16
65	75	185	145	92	4	18	18	pn16
65*	75	185	145	92	8	18	18	pn16
80	90	200	160	108	8	18	20	pn16
100	110	220	180	128	8	18	20	pn16
100*	125	220	180	135	8	18	20	pn16
125	125	250	210	135	8	18	22	pn16
125*	140	250	210	158	8	18	22	pn16
150	160	285	240	178	8	22	22	pn16
150*	180	285	240	188	8	22	22	pn16
200	200	340	295	235	12	22	24	pn16
200*	225	340	295	238	12	22	24	pn16
250	250	405	355	288	12	26	26	pn16
250*	280	405	355	294	12	26	26	pn16
300	315	460	410	338	12	26	28	pn16
350	355	520	470	376	16	26	30	pn16
400	400	580	525	430	16	30	32	pn16
200	200	340	295	235	8	22	24	pn10
200*	225	340	295	238	8	22	24	pn10
250	250	395	350	288	12	22	26	pn10
250*	280	395	350	294	12	22	26	pn10
300	315	445	400	338	12	22	26	pn10
350	355	510	460	376	16	22	28	pn10
400	400	570	515	430	16	26	30	pn10
400	450	620	565	517	20	26	32	pn10

Quality Assurance

We have the certificate of ISO9001 and CE,BV,SGS and CNAS approval with the strength of service, good quality and pretty competitive price. Customers’ biggest benefit is our goal, machine’s quality is the life of our company. By many years of growth, we have our best partners in the world.
